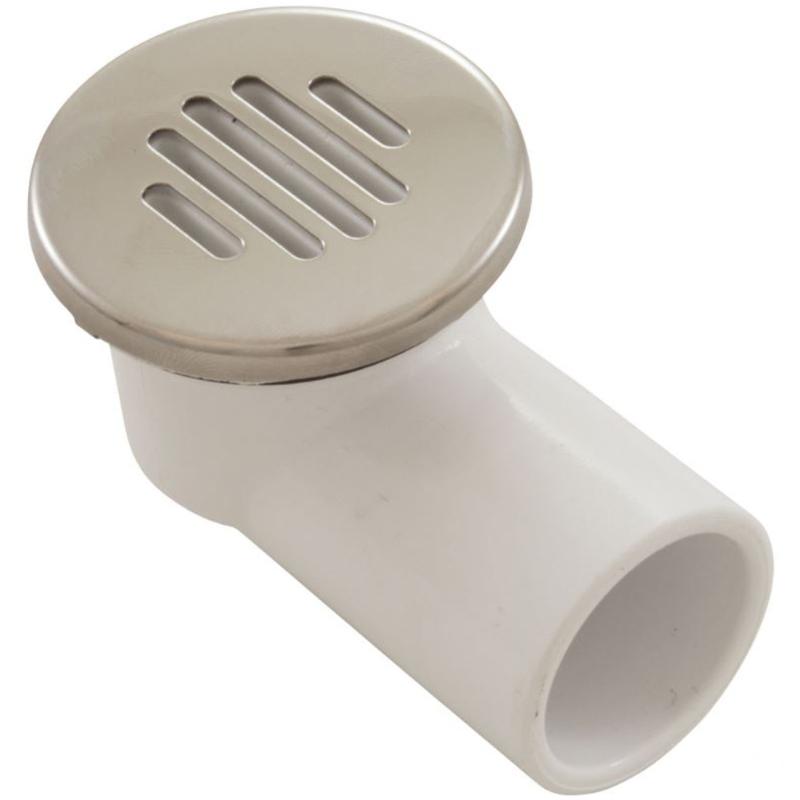

This Waterway drain assembly allows water to exit by gravity. It should never be used with a pump to suck out the water, as there is no protection against entrapment. The connection socket has a 90° angle to minimize the depth needed in the spa shell.

The gasket is included.

Pipe connections

Outside diameter : 33 mm for a 1-inch pipe by adding a straight connector or an elbow Inside diameter : 27 mm, for 3/4 inch pipe

Dimensions

Outside diameter of the face: 49 mm Depth of the socket (inside the spa shell): 39 mm Hole diameter in the spa shell: 31 mm Total height (Face + gasket + socket): 49 mm
