Sequencer Valve - Magic

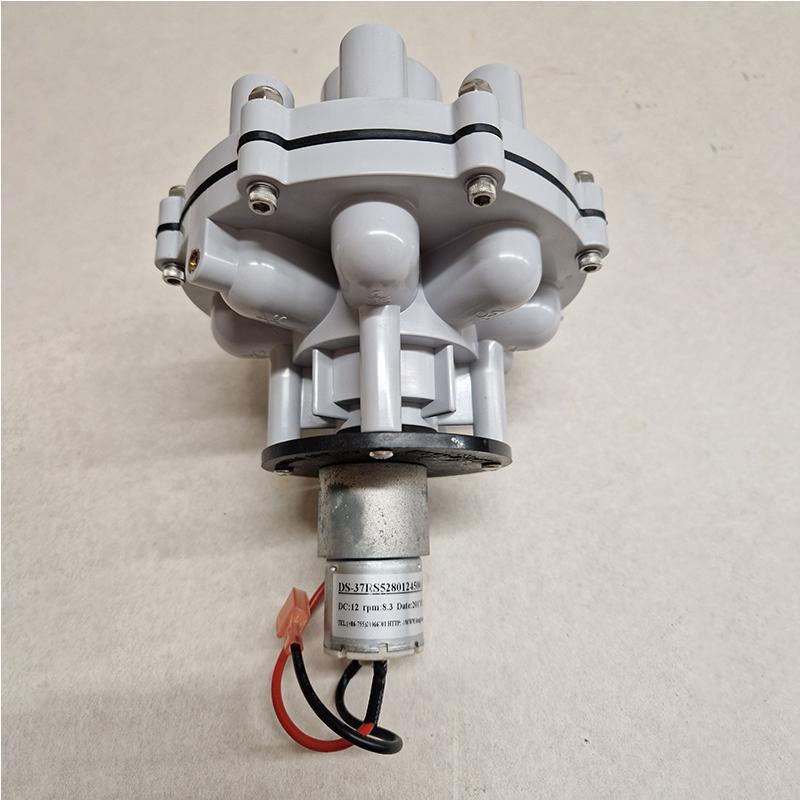

Original Vita Spa, Maax and Elite spa multi-port sequencer valve assembly 109035 for the sequencer system that provides a moving massage in select spa models equipped with the 4 button sequencer control panel and sequencer electronics box.

Sequencer Valve part number 109035.

This item can take 5-7 days to ship as it is a special order.

Connects to 2 inch plumbing at the intake and has 3/4 inch outputs.  In the case 2 inch flex is not fitting well, can use 2 inch Schedule 40 rigid PVC pipe at the main intake.

Note this valve type was used in select model Vita Spas, however, QCA Spas and others were using the 4x single black solenoids instead of this one - be sure to order the right solenoid for your sequencer or contact us for assistance with your particular spa model.

Magic sequencer valve creates a dynamic massage when controlled by the sequencer electronics.

We also offer a complete sequencer retrofit plumbing kit KT15-SEQUENCER Kit that includes this valve and plumbing parts needed to retrofit this to a spa onto pump 2 or 3 lines without a sequencer.

Sequencer Power supply sold separately as part nr 109036.
